AC SPD

Ex9UE

Surge Protection Devices
Type 1+2(Classl+ll, T1+T2, B+C)
Tested according to EN 61643-11
Max. impulse current limp 25 kA (10/350 us) per module and 100 kA for NPE module
Maximum continuous operational voltage Uc 280V AC
Versions with 3+0,3+1and 4+0 connection
Plug-in module design
With and without remote indication contact
Device status indicator

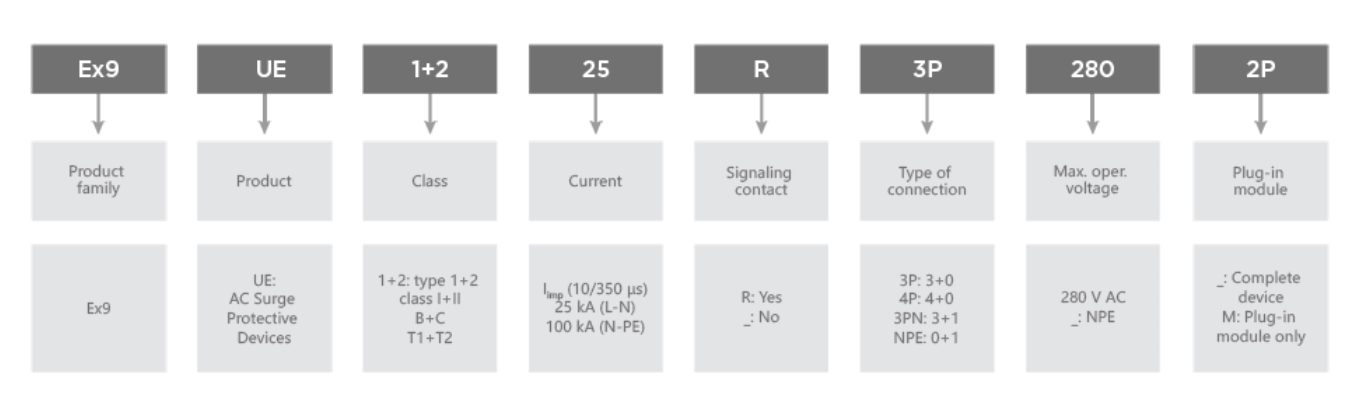

Model Selection

Documents

Document Name	Type	Size	Format
Ex9UE Catalogue	Catalogue	2.04MB	PDF
Ex9UE1+2 25 CE	Certificate	205.63KB	PDF
Ex9UE2 CE	Certificate	3.29MB	PDF
Ex9UE3 CE	Certificate	1.67MB	PDF
Ex9UE1+2 25 3P-STP	Drawing	6.35MB	STP
Ex9UE1+2 25 4P、3PN-STP	Drawing	11.72MB	STP
Ex9UE2 1P-STP	Drawing	3.87MB	STP
Ex9UE2 2P、1PN-STP	Drawing	6.36MB	STP
Ex9UE2 3P-STP	Drawing	5.96MB	STP
Ex9UE2 4P、3PN-STP	Drawing	6.86MB	STP
Ex9UE3-STP	Drawing	4.63MB	STP
Ex9UE1+2 25 Manual	Manual	1.17MB	PDF
Ex9UE3 Manual	Manual	1.38MB	PDF

Get code

The download is deemed to be consent《User Agreement and Privacy Policy》

Download Now

AC SPD

Ex9UE

Surge Protection Devices
Type 1+2(Classl+ll, T1+T2, B+C)
Tested according to EN 61643-11
Max. impulse current limp 25 kA (10/350 us) per module and 100 kA for NPE module
Maximum continuous operational voltage Uc 280V AC
Versions with 3+0,3+1and 4+0 connection
Plug-in module design
With and without remote indication contact
Device status indicator

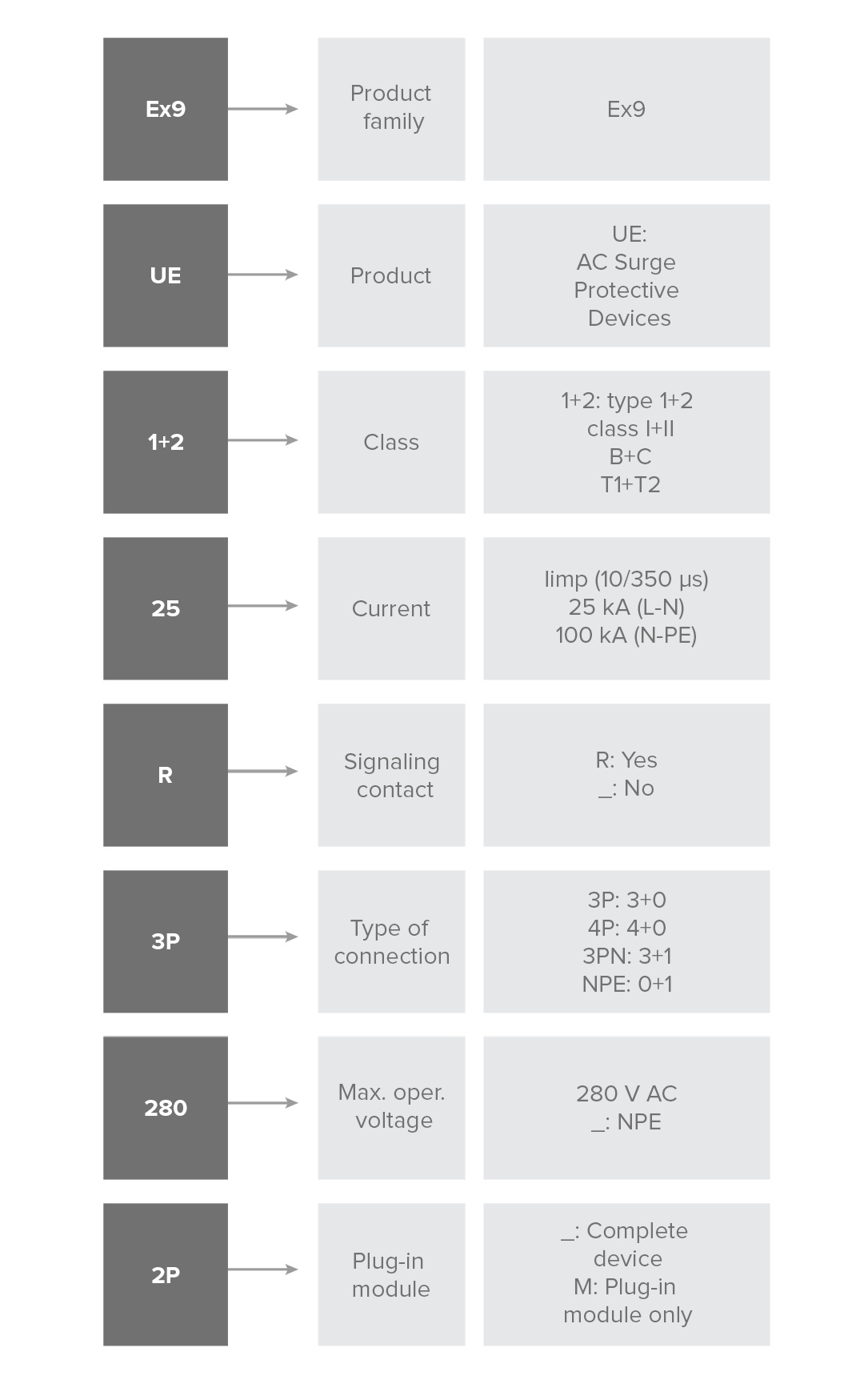

Selection Guide
