RCBO 36mm

Ex9BL

Residual Current circuit Breakers with Overload protection according to AS/NZS 61009:2015
Rated breaking capacity Icn 6 kA
1+N-pole version
Rated residual current 30, 100, 300 mA
Rated currents up to 40 A
C tripping characteristics of installed circuit breaker
A type of RCBO
2-module width
Suitable for applications from -25 to +40°C

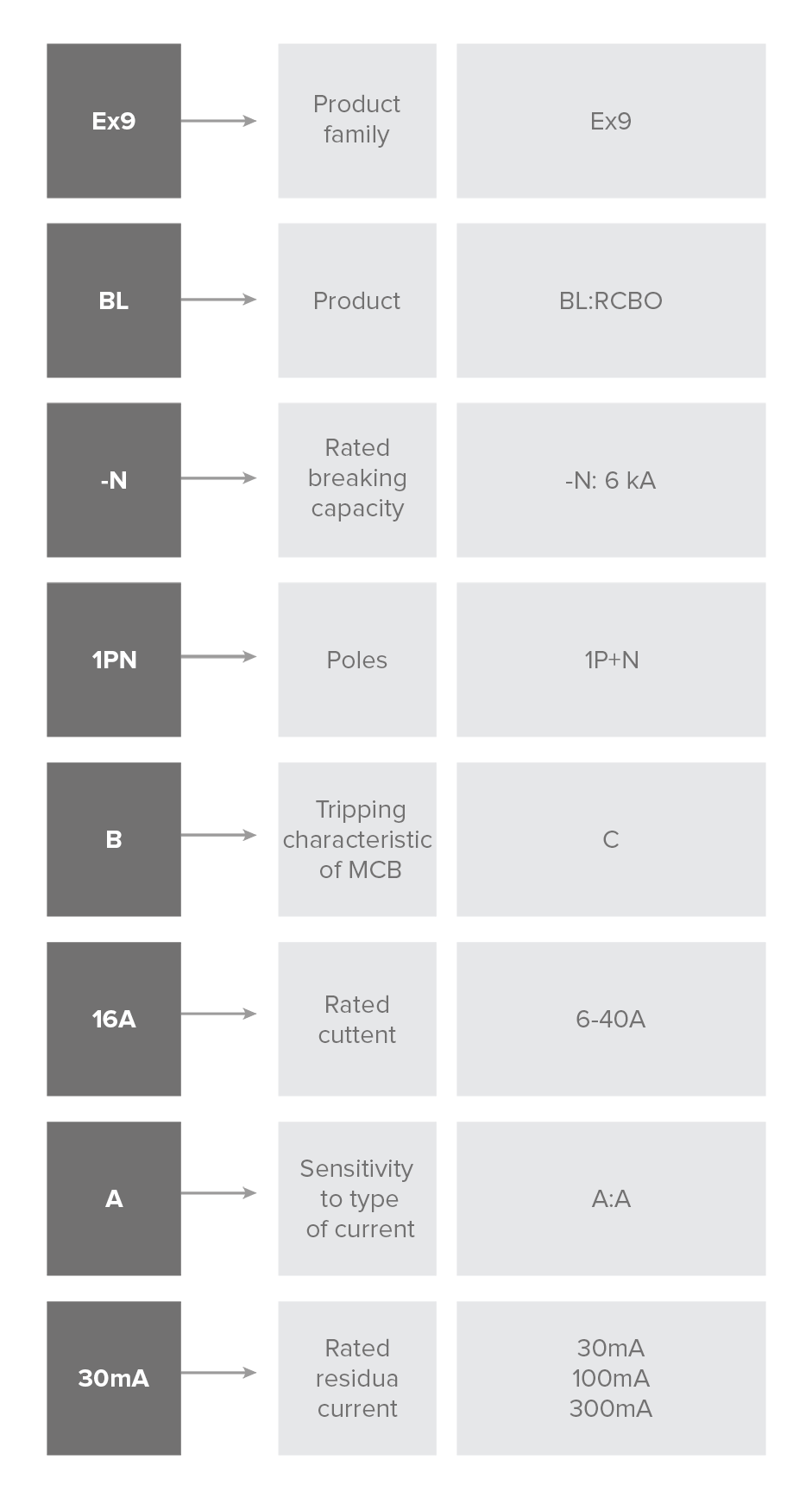

Model Selection

Documents

Document Name	Type	Size	Format
Ex9BL Catalogue	Catalogue	107.26KB	PDF
Ex9BL NSW28152	Certificate	1,021.87KB	PDF
Ex9BL-40 1P+N-STP	Drawing	13.70MB	STP
Ex9BL-40 2P-STP	Drawing	16.29MB	STP
Ex9BL-40 3P+N-STP	Drawing	23.73MB	STP
Ex9BL-40 3P-STP	Drawing	19.62MB	STP
Ex9BL Manual	Manual	772.11KB	PDF

Get code

The download is deemed to be consent《User Agreement and Privacy Policy》

Download Now

RCBO 36mm

Ex9BL

Residual Current circuit Breakers with Overload protection according to AS/NZS 61009:2015
Rated breaking capacity Icn 6 kA
1+N-pole version
Rated residual current 30, 100, 300 mA
Rated currents up to 40 A
C tripping characteristics of installed circuit breaker
A type of RCBO
2-module width
Suitable for applications from -25 to +40°C

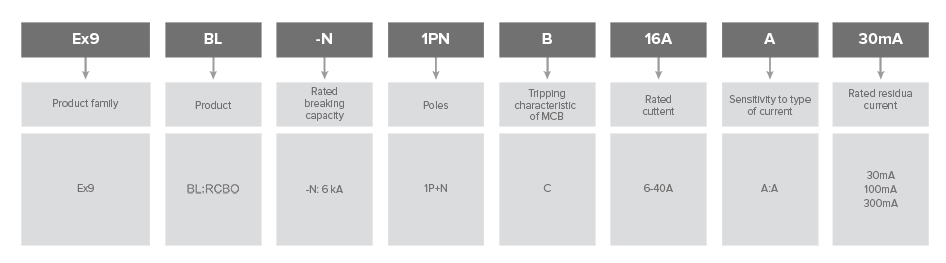

Selection Guide

Documents

Document Name	Type	Size	Format
Ex9BL Catalogue	Catalogue	107.26KB	PDF
Ex9BL NSW28152	Certificate	1,021.87KB	PDF
Ex9BL-40 1P+N-STP	Drawing	13.70MB	STP
Ex9BL-40 2P-STP	Drawing	16.29MB	STP
Ex9BL-40 3P+N-STP	Drawing	23.73MB	STP
Ex9BL-40 3P-STP	Drawing	19.62MB	STP
Ex9BL Manual	Manual	772.11KB	PDF

Get code

The download is deemed to be consent《User Agreement and Privacy Policy》

Download Now
